M Type Elevator Bucket

M TYPE

Usage:

Suitable for high-speed or light bulk material lifting.

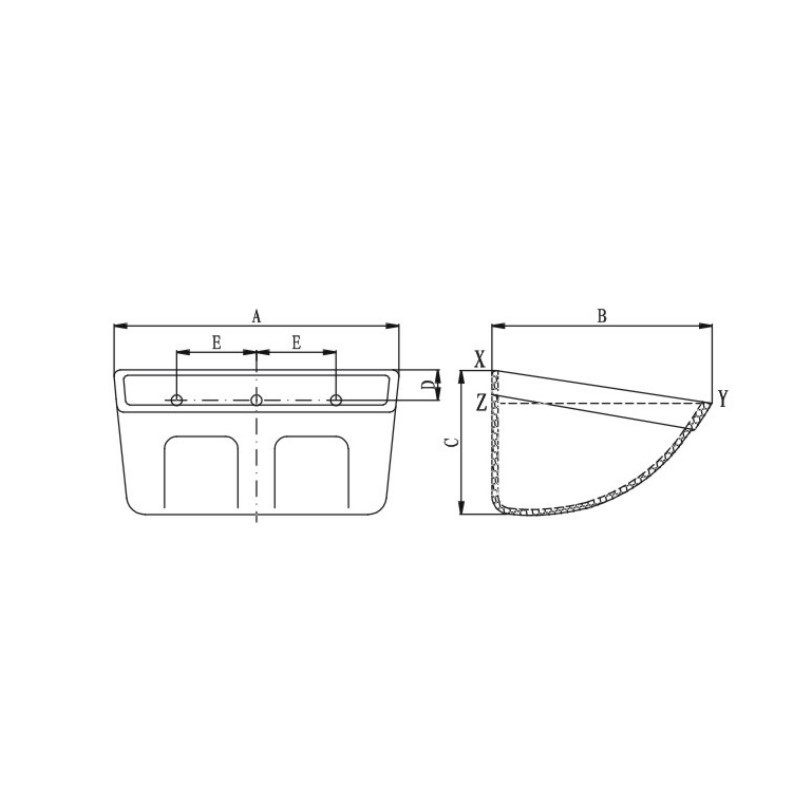

Recommended minimum bucket spacing: width of the bucket projection"B"+25mm,which can be appropriately reduced according to elevator capacity requirment.

Recommend elevator line speed ≤ 3.3m/s, which can be changed according to the different pulley diameter and discharge angle.

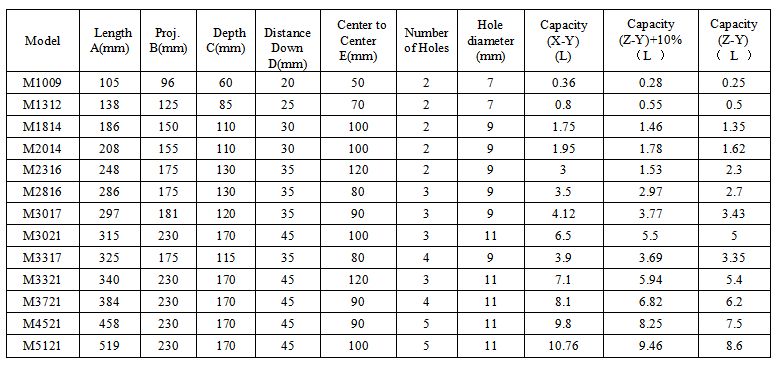

Recommended using "(Z-Y)"+10% as usable capacity for engineering design.
