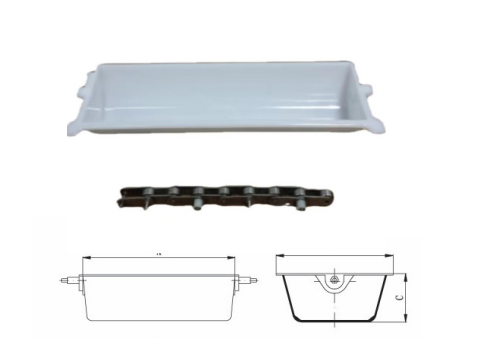

DL TYPE
It is suitable for the chain conveyor which have vertical and horizontal mixing conveying and more application in seed and food processing industry.
|
Model |
Length A(mm) |
Proj. B(mm) |
Depth C(mm) |
Capacity （L） |
|
DL2412 |
246 |
122 |
60 |
1.20 |
|
DL2619 |
260 |
190 |
78.5 |
2.34 |
|
DL3115 |
310 |
150 |
75 |
2.30 |
|
DL3219 |
330 |
200 |
110 |
3.19 |
|
DL3319 |
330 |
198 |
103 |
4.00 |
|
DL3821 |
380 |
213 |
125 |
4.80 |
|
DL4013 |
406 |
133 |
69 |
2.00 |
|
DL6323 |
632 |
236 |
120 |
11.00 |
