Fang Bolt
Material:Carton Steel(Zinc Plated), Stainless Steel
Strength Grade:4.8
Thread Manufacturing Precision:6g
Model
Inch Model
d
Head Diameter
(mm)D
Length
(mm)L
Package
(number per
carton)
M6 X 25
1/4″X1″
M6
25
25
2500
M6 X 30
1/4″X1 1/4″
M6
25
30
2500
M6 X 35
1/4″X1 3/8″
M6
25
35
2500
M8 X 30
5/16″X1 1/4″
M8
27
30
1000
M8 X 35
5/16″X1 3/8″
M8
27
35
1000
M8 X 40
5/16″X1 1/2″
M8
27
40
1000
M10 X 35
3/8″X1 3/8″
M10
30
35
600
M10 X 40
3/8″X1 1/2″
M10
30
40
600
M10 X 45
3/8″X 1 3/4″
M10
30
45
600
M10 X 50
3/8″X2″
M10
30
50
600

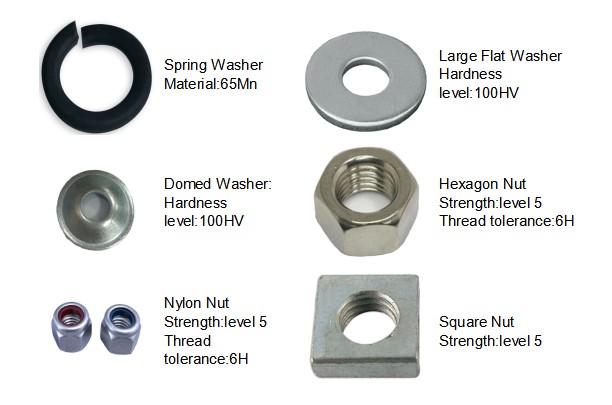

Belt Set Options:
Option F:Square Nut
Option Y:Domed washer+spring washer+hexagon nut
Option S:Large flat washer+spring washer+nylon nut
Option P:Large flat washer+spring washer+hexagon nut

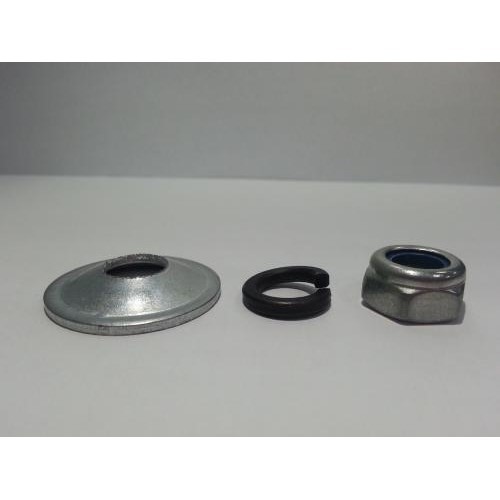

Option WS:Domed washer+spring wash+nylon nut
